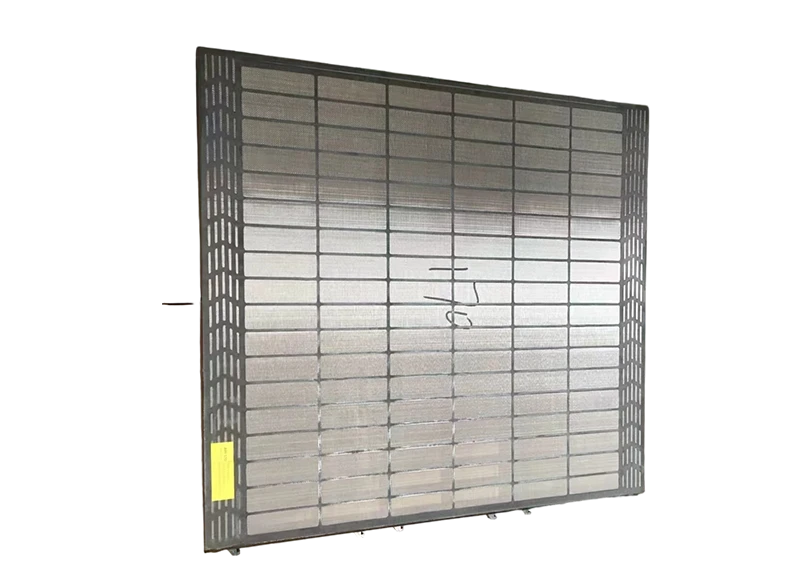

SWACO® MD-2/3™ Replacement Shaker Screens

Replacement composite frame screens specially designed for SWACO MD shaker, which is composed of high-strength glass fiber reinforced plastic and an internal steel bar frame. Advanced hot-pressing technology bonds three layers of metal mesh to the composite frame, allowing each layer of metal mesh to be tensioned separately and evenly. The overall structure enhances the strength of the screens. While achieving efficient screening, it also extends the service life of the screens.

Inquire Now Next Product

Advantages

MD replacement screens provided by Yuanpeng is composed of high-strength glass fiber reinforced plastic and a steel frame, which enhances the screens fatigue resistance when subjected to mud impact and gravitational vibration, thereby extending the screens service life.

Three layers of metal mesh fabric are bonded and fixed to the composite frame to from a consistent tension, enhancing the durability of the screens. The reasonable combination of metal mesh can improve the fluid penetration ability and reduce screens clogging.

Dividing the original rectangular grid into two separate square grids has prolonged the service life of the screens, altered the flow trajectory of rock debris on the screens, made it undergo more random movements, and increased the retention time of rock debris on the screens. Thus, drier solids with lower liquid content can be obtained, reducing disposal costs and minimizing environmental pollution to the greatest extent.

Features

1. Improve the performance of the shaker and its fluid handling capacity.

2. Easy and quick to install，with interlock connection.

3. Independent grid of the screens can be quickly repaired with a dedicated plug after local damage.

4. Compliant with API RP 13C standard to ensure product consistency.

Product Parameters

Size	627mm x 650mm
Wire Material	SS304 / SS316
API Mesh Range	API 8 - 325
Packaging	Carton and pallet packaging.
Place of Origin	China
Compatible Shaker	SWACO® MA-2/3™ Series Shaker
