Steel-framed corrugated screens replace traditional flat screens, completely solving the problem of mud screening overload.
Steel-framed corrugated screens replace traditional flat screens, completely solving the problem of mud screening overload.
Share:
In a complete solids control equipment system, the mud processing capacity of the shaking table is crucial. Traditional composite-framed flat screens used with shaking tables are prone to incomplete mud screening and leakage under high-flow mud conditions.
This time, we customized a custom-made steel-framed corrugated screen for a leading domestic solids control equipment manufacturer, specifically replacing the original composite-framed flat screen. By increasing the effective filtration area of the screen, we fundamentally solve the problem of insufficient mud screening at high flow rates, enhancing the core competitiveness of the customer's equipment.
I. Existing Equipment Pain Points
As a professional solids control equipment manufacturer, the client's original shaking table was equipped with a composite frame flat screen. While this met basic screening needs under normal operating conditions, its limitations became apparent when dealing with high-flow, high-concentration mud operations. The core issues were twofold:
1. Limited Mud Processing Capacity:
The flat screen has a single, flat structure with a fixed effective screening area. When the mud flow rate is high, the mud cannot be effectively screened completely, leading to overflow.
2. High Solid-to-Liquid Content:
The flat screen has a slow flow rate, resulting in a high solid-to-liquid content during screening, increasing subsequent disposal costs.
II. Customized Solution: Steel Frame Corrugated Screen

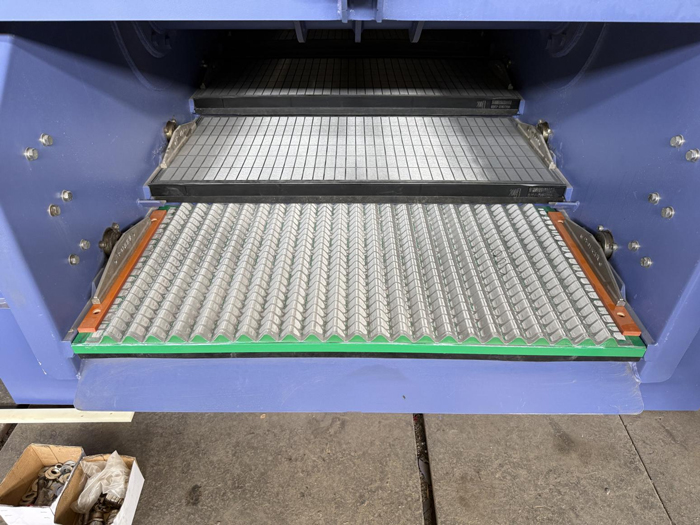

Based on the client's shaking table structure, we customized a steel frame corrugated screen, achieving a significant performance improvement.
1. Three-Dimensional Corrugated Structure, Expanding Capacity and Increasing Efficiency
Unlike the traditional flat screen design, the corrugated three-dimensional raised structure significantly expands the effective screening area. For the same screen size, the screening area is far greater than that of a flat screen. 1. Unique Three-Dimensional Flow Guiding Structure: This structure enables rapid flow diversion and enhances fluid handling capacity, perfectly solving the core problem of incomplete screening by flat screens under high-flow-rate mud conditions.
2. Steel Reinforced Frame, Doubled Strength:
Abandoning traditional composite frame materials, this integrated steel reinforced frame boasts high overall screen strength, excellent load-bearing capacity, impact resistance, and wear resistance. The structure remains stable even under long-term high-frequency vibration and high-intensity mud scouring conditions.
3. Case Summary:
This customized steel-framed corrugated screen precisely solves the problem of low screening efficiency caused by traditional flat screens under high-flow-rate mud operations. It not only helped the customer optimize and upgrade the core performance of the shaking table, enhancing the equipment's market competitiveness, but also gained high customer recognition due to its customized, high-performance product advantages.
Yuanpeng, as a leading screen manufacturer, can provide customized screen solutions for different brands and models of vibrating screens.
