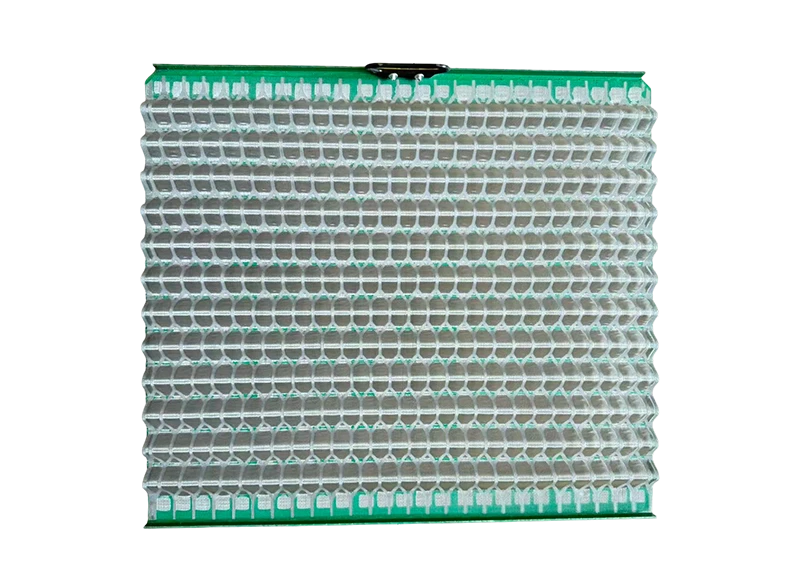

DP600 Corrugated Shaker Screens
DP600 Corrugated Shaker Screens

DP600 Corrugated Shaker Screens

Replacement wavy screens specially designed for DERRICK Dual Pool shaker not only retains the multi - layer mesh advantages of flat screens but also significantly increases the screening area, enhances the performance of the shaker. This means higher efficiency in fluid screening, less downtime and greater mud processing capacity. Fine screening of the mud during operation can reduce the solid content in the recovered liquid, obtain cleaner liquid, effectively lower the cost of drilling mud, reduce dilution and improve economic benefits.

Share:

Advantages of DP600 Corrugated Shaker Screens

Dual Pool  wavy replacement screens provided by Yuanpeng is designed with a more robust triangular wavy shape, aiming to enhance the screens resistance to deformation and fatigue caused by mud impact and gravitational vibration, thereby extending the screens service life.

Wavy screens enhances the fluid processing capacity and increases the fluid permeability area. the solids enter the corrugated grooves, allowing more fluids to pass through the top of the screens for screening, thereby minimizing fluid loss and screening out drier solids.

Wavy screens can achieve more precise screening and maximize the solid - liquid separation efficiency of the shaker.

Features of DP600 Corrugated Shaker Screens

1. Fluid processing capacity has been enhanced.

2. Screening area is larger

3. Concave design of the screens increases the capacity of the shaker and prevents mud leakage.

4. Compliant with API RP 13C standard to ensure product consistency.

Product Parameters of DP600 Corrugated Shaker Screens

Size 626mm x 709mm
Wire Material SS304 / SS316
API Mesh Range API 8 - 400
Packaging Carton and wooden cases / pallet packaging.
Place of Origin China
Compatible Shaker Derrick® Dual Pool™ Series Shaker



How to Select the Right DP600 Replacement Shaker Screen



Choosing the right DP600 wave shaker screen requires consideration of equipment compatibility, API screen designation, drilling fluid characteristics, and operating conditions.

Selection Factor Purchasing Considerations
Shaker Compatibility Verify the Derrick Dual Pool shaker model and screen mounting dimensions before ordering.
API 8–80 Suitable for applications prioritizing coarser solids removal and fluid throughput.
API 100–200 Consider for finer solids separation where a balance between fluid recovery and screening performance is needed.
API 230–400 Evaluate for finer particle separation, taking fluid viscosity and screen loading into account.
Mesh Material Choose SS304 or SS316 according to operating conditions and material requirements.
Screen Design Select corrugated screens when additional screening area is required within the existing panel footprint.

For replacement orders, provide the shaker model, existing screen dimensions, required API designation, and order quantity. These details help verify compatibility and identify the appropriate screen configuration.



DP600 Corrugated Shaker Screen Supply by Yuanpeng



Yuanpeng supplies DP600 corrugated replacement shaker screens for drilling contractors, solids control companies, and screen distributors.

We offer different API screen designations, SS304 and SS316 mesh options, OEM and private label services, and customized packaging to support replacement and bulk purchasing requirements.

Contact Yuanpeng with your Derrick Dual Pool shaker model, API designation, and purchase quantity to discuss product compatibility, pricing, and delivery arrangements.
